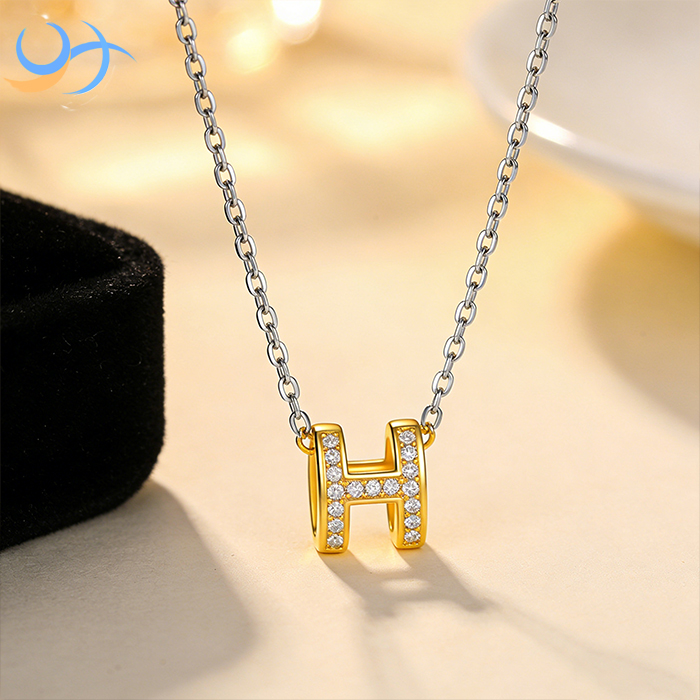

Craftsmanship and Manufacturing Process of the H-Design Cubic Zirconia Pendant Necklace

The H-shaped cubic zirconia pendant necklace, a signature piece of minimalist luxury fine jewelry, blends timeless design with meticulous manufacturing craftsmanship. Every step of its production, from initial prototyping to final quality inspection, follows strict industry standards, with a particular focus on precision zirconia setting and durable electroplating processes to ensure both aesthetic appeal and long-term wearability. This article details the complete manufacturing sequence, core craftsmanship, and technical details of the stone setting and electroplating procedures for this necklace.

The production journey begins with professional 3D CAD design, where designers precisely map the dimensions of the iconic H-shaped pendant, including the thickness of the metal frame, the reserved setting grooves for cubic zirconia, and the connection points for the chain. The design prioritizes both visual symmetry and ergonomic wearability, ensuring the pendant lies smoothly against the skin without sharp edges. After digital design validation, a high-precision 3D resin printer creates a physical prototype, which is then manually adjusted to refine contour lines, verify the fit of the stone positions, and confirm the overall proportion before mass production.

Once the prototype is finalized, the manufacturing process moves to investment casting (lost-wax casting), the industry-standard method for jewelry production. Multiple wax replicas of the H pendant are created via injection molding, each identical to the final design. These wax models are assembled onto a wax tree, then encased in a high-temperature resistant gypsum slurry. After the gypsum solidifies, the mold is heated in a furnace to melt and remove the wax, leaving a precise hollow cavity in the shape of the pendant. Molten high-quality brass alloy, chosen for its excellent corrosion resistance, stable hardness, and ideal base for electroplating, is poured into the preheated mold under vacuum pressure to avoid air bubbles and structural defects. Once cooled, the gypsum mold is broken open, and the rough castings of the H pendants are separated from the casting tree for subsequent processing.

The rough castings then undergo rigorous filing and pre-polishing. Skilled artisans use precision files and grinding tools to remove excess casting sprues, smooth out surface imperfections, and refine the edges and contours of the H shape, ensuring every line is clean and consistent. This is followed by multi-stage pre-polishing, from coarse grinding with abrasive wheels to fine polishing with cloth wheels, to create a flawlessly smooth metal surface. This step is critical: a perfectly polished base not only ensures a tight fit for zirconia setting but also directly impacts the adhesion and uniformity of the subsequent electroplating layer.

The cubic zirconia setting is the most labor-intensive and technically demanding step in production, featuring a full micro-pavé setting of high-grade 5A round brilliant-cut cubic zirconia on both sides of the H frame. First, artisans select premium 5A cubic zirconia, which boasts exceptional fire, clarity, and hardness comparable to natural diamonds, with strict size tolerance control to ensure consistent stone dimensions. Using a high-precision CNC engraving machine, technicians drill evenly spaced setting seats on the pre-polished H pendant, with each hole’s depth and diameter perfectly matched to the girdle of the corresponding zirconia stone. The positioning is calibrated to ensure perfect bilateral symmetry of the stone rows on the H shape, with uniform spacing between each stone to create a seamless, continuous sparkle.

Skilled stone setters then use specialized gravers to carve tiny metal beads between each setting seat. Each zirconia is carefully placed into its seat with precision tweezers, ensuring it sits perfectly level with no tilting or misalignment. The artisan then gently compresses the metal beads to lock the girdle of the zirconia firmly in place. This micro-pavé method maximizes the exposure of the stone’s facets to enhance brilliance, while ensuring exceptional holding strength to prevent stones from loosening or falling out during daily wear. After setting, each piece is inspected under a magnifying glass to check for misaligned stones, sharp edges, or loose settings, with any defects corrected immediately.

The multi-layer electroplating process is critical to the necklace’s luxurious gold finish and long-term anti-tarnish performance, using an environmentally friendly, nickel-free system that meets international jewelry safety standards. First, the set pendant and matching cable chain undergo thorough ultrasonic cleaning in deionized water with a neutral cleaning agent. High-frequency ultrasonic vibrations remove all residual metal dust, polishing compounds, oil, and impurities from the surface and tiny gaps between the zirconia stones, ensuring absolute cleanliness of the substrate. This is followed by a weak acid activation treatment to remove any surface oxide film, further improving the adhesion of the plating layer.

The electroplating sequence begins with a base copper plating layer, which fills in microscopic pores on the metal surface, enhances flatness, and creates a uniform foundation for subsequent layers. Next, a palladium-nickel alloy intermediate layer is applied, which acts as a barrier to prevent substrate oxidation and block metal migration, significantly improving the necklace’s corrosion resistance and anti-tarnish performance. The final top layer is 18K real gold electroplating, with a strict thickness control of 2-3 microns (thick gold plating standard) for extended wear life. Technicians precisely control the current intensity, plating time, temperature, and concentration of the gold plating solution to ensure a uniform, consistent gold tone across the entire piece, with no pinholes, blistering, or color difference. After gold plating, the pieces undergo a passivation treatment to form a protective film on the gold surface, enhancing resistance to sweat, humidity, and daily wear, effectively preventing fading and oxidation. Finally, a gentle soft polishing is performed to bring out the warm, lustrous finish of the gold plating.

After electroplating, the H pendant is assembled with the polished gold-plated cable chain, with the connecting rings securely welded closed to prevent breakage. Every finished necklace then undergoes a comprehensive final quality inspection: visual inspection under professional lighting to check for plating defects, scratches, or misaligned stones; a tension test to verify the strength of the chain and connecting points; and a salt spray test to validate corrosion resistance. Only pieces that pass all inspections are approved for release.

In summary, the production of this H-shaped zirconia necklace involves over 20 intricate steps, with the micro-pavé zirconia setting and multi-layer gold electroplating as the core processes that define its quality and durability. The combination of precision machinery and handcrafted artistry ensures that each piece not only delivers a luxurious, sparkling aesthetic but also stands up to the rigors of daily wear, making it a timeless and versatile addition to any jewelry collection.
